Harvia HPC2 Cilindro Embedding Flange

This stainless flange finishes a Harvia Cilindro E heater when you drop the barrel through a bench cutout. It is an embedding ring, not a chimney, not a safety rail, and not the LED Cilindro flange. Heater, stones, and Xenio or Fenix are sold separately.

How it is used

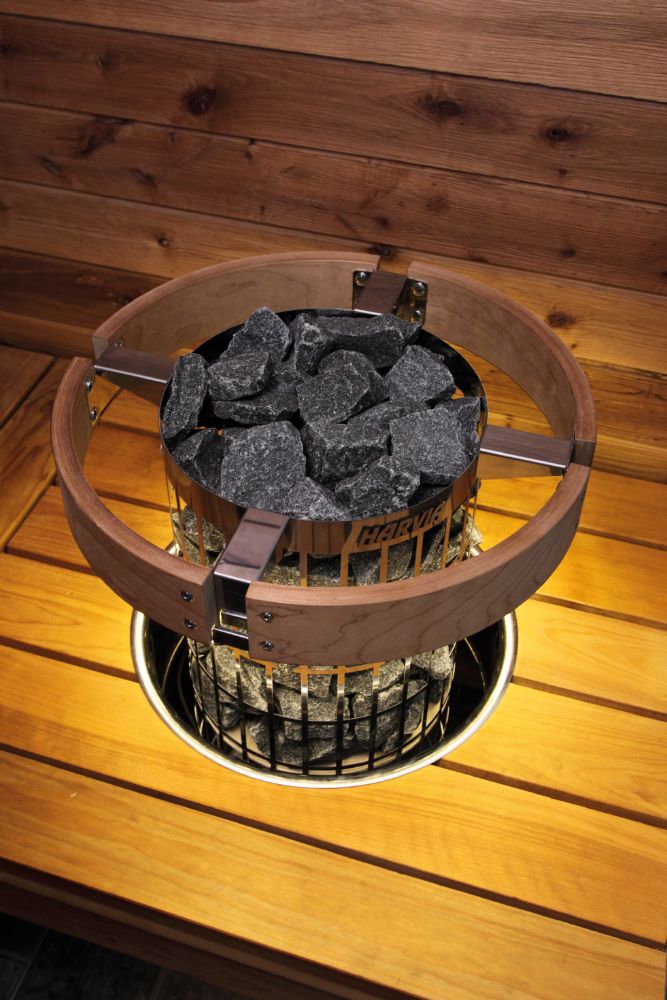

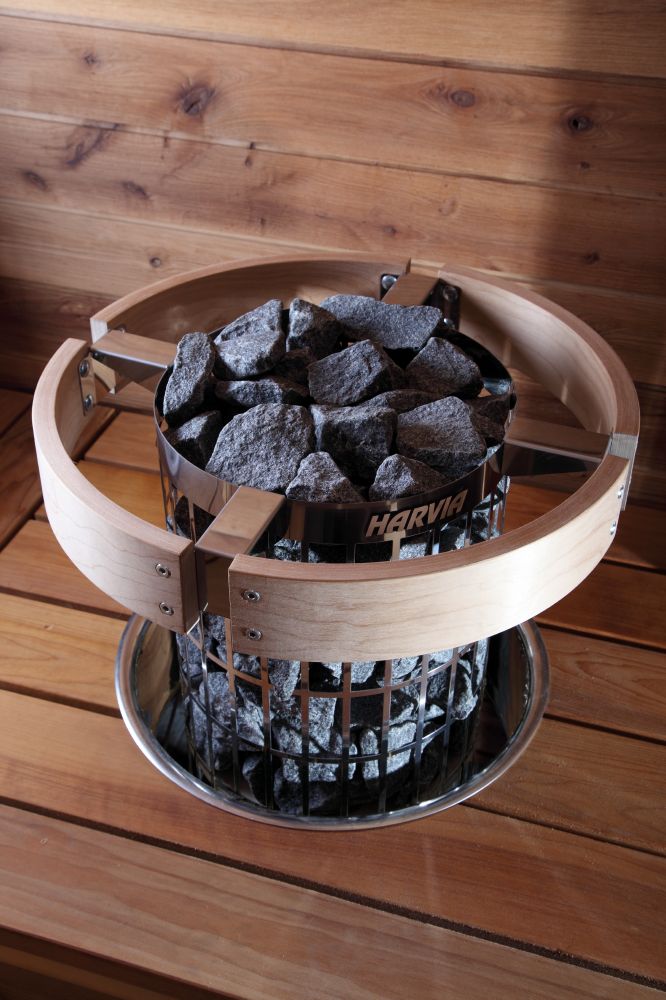

Cut the bench, set the Cilindro through the hole, and the flange covers the raw wood and takes some of the heat off the bench. Harvia: mounting hole diameter 430 mm. Catalog title on this SKU is 7.0 / 9.0 kW Cilindro. On this shop we put it on PC60E (6 kW), PC80E (8 kW), and PC90E (9 kW). PC110E 10.5 kW uses HPC7, not this ring. Non-E Cilindro (on-heater controls) does not get this add-on.

What’s included

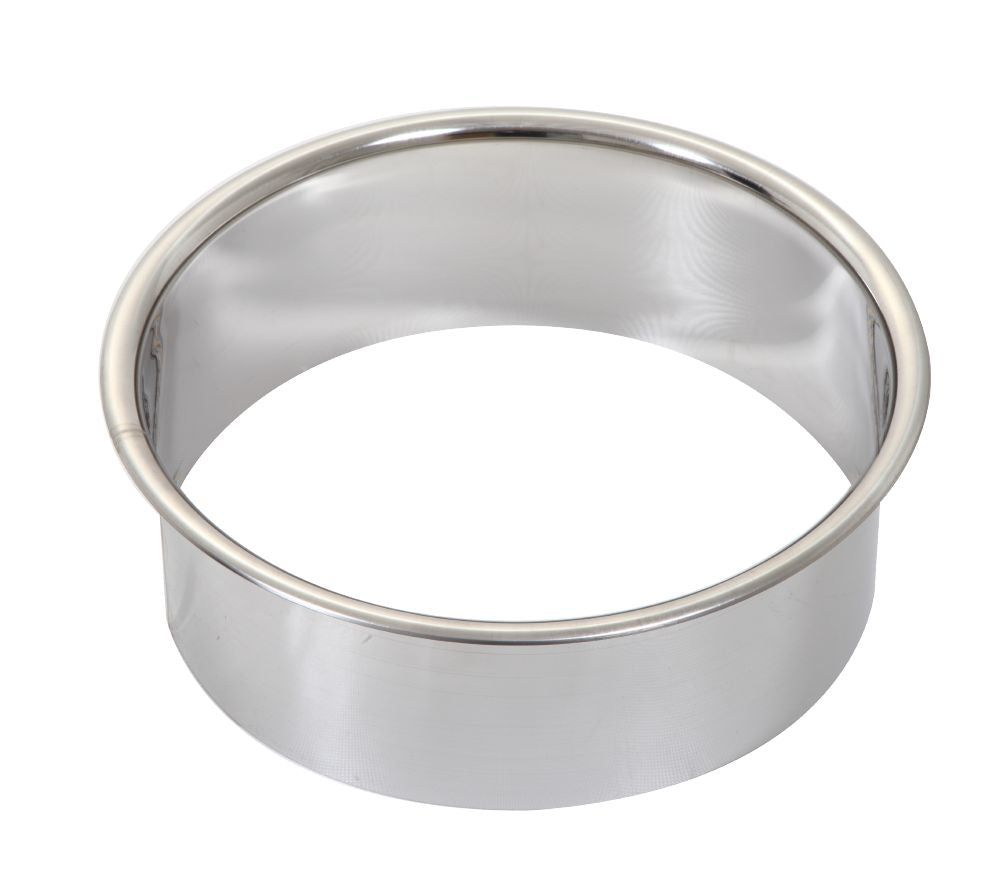

• Harvia HPC2 stainless embedding flange
• Install sheet in the carton
• Heater, stones, and control not included

Specs

• Brand: Harvia (Finland)
• Model: HPC2
• SKU: 104-EMBED-HPC2
• Fits (this shop): Cilindro PC60E / PC80E / PC90E
• Not for: PC110E (use HPC7); Cilindro non-E; Spirit; Virta; Club; HUUM; LED HPCU flanges
• Material (Harvia): Stainless steel
• Height (Harvia US): 5.94 in / 151 mm
• Width × depth (Harvia US): 16.14 in × 16.14 in / 410 × 410 mm
• Mounting hole (Harvia): 430 mm diameter
• Net weight (Harvia US): 2.6 lb / 1.2 kg
• Role: Embedding flange — not a chimney, not a guard

Downloads

• Harvia HPC2 / HPC7 embedding flange USA install sheet (PDF)

FAQ

10.5 kW Cilindro?
No. That is HPC7.

Does this replace the control?
No. E-models still need Xenio or Fenix, sold separately. Pick one control.

LED flange?
Not this SKU. LED Cilindro embedding flanges are a different catalog line — skipped this pass.

Can I check out?
Yes. Email hello@selfcaresaunas.com if the bench cut is already made and you want the hole size confirmed.

A licensed electrician reads the nameplate and the manufacturer manual — we do not guess breaker size.

Questions? Email hello@selfcaresaunas.com.
