This cage sits on a HUUM wood stove around the flue and you fill it with extra stones. The stove’s own pile is not enough. Heat from the pipe goes into the rocks instead of sitting on bare metal. It is a stone cage, not a chimney set, not a rain cap, and not an embedding flange.
How it is used

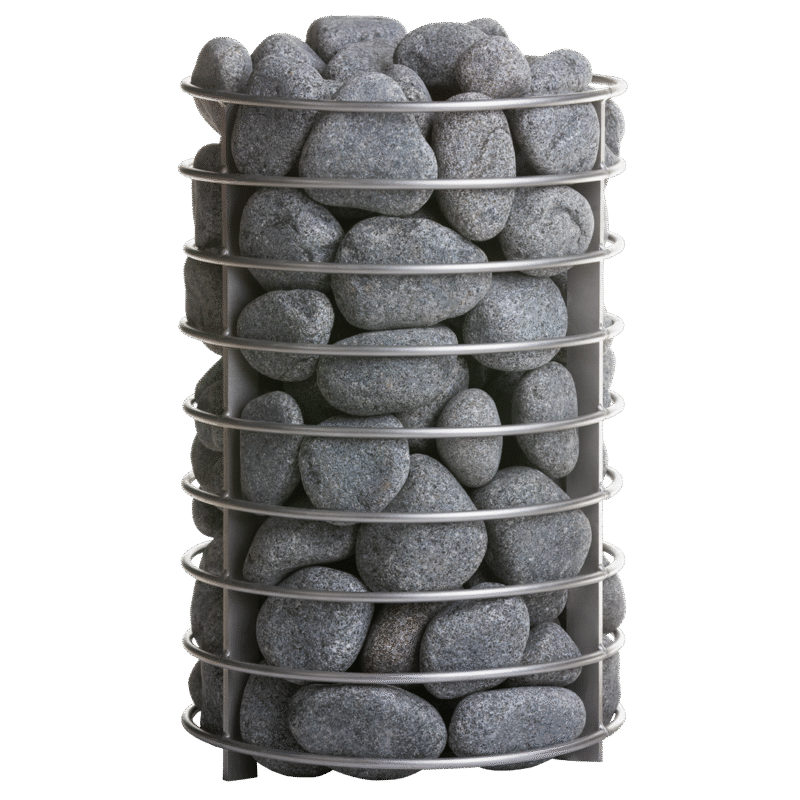

Set it on the stove around the chimney pipe, then fill. HUUM’s US stone-cage manual: 35–40 kg / 77–88 lb of 5–10 cm (2–4 in) stones in the cage. We shop the upper end — about 40 kg / 88 lb — as about 3 extra boxes of HUUM SM (534-BDL-STONES-SM-33, 15 kg each → 45 kg vs 40 kg spec). Not Harvia 10–15 cm. Stones sold separately. Cages stack; HUUM’s US sheet says you can put more than one on a flue (M6 bolts, 14 mm thread, sold separately — not in this carton). Fits HIVE Wood 13 / 17 / LS 17 and HIVE Flow / Flow LS / Mini / Mini LS. Not for HUUM electric DROP, HIVE, CLIFF, or STEEL. Not an embedding flange (those are different SKUs).
What’s included
- HUUM Cage HSTV stainless stone cage (model CAGE HSTV / H3009042)
- US install sheet (linked below)
- Stones not included — budget about 3 extra 15 kg boxes of 5–10 cm HUUM SM per cage
- Stacking bolts / nuts not included
- Chimney set not included
Specs
-
Brand: HUUM
-
Model: CAGE HSTV
-
SKU: 534-HIVE-STV-STCAGE
-
Manufacturer code: H3009042
-
Fits: All HUUM wood-burning stoves in this shop: HIVE Wood 13 / 17 / LS 17; HIVE Flow / Flow LS / Mini / Mini LS (and those packages)
-
Not for: HUUM electric (DROP / HIVE / CLIFF / STEEL); embedding flanges; Harvia / Cozy stoves
-
Material (HUUM): Stainless steel
-
Height (HUUM): 43 cm / 16.9 in
-
Diameter (HUUM): 30 cm / 11.8 in
-
Stone size in the cage (HUUM US manual): 5–10 cm / 2–4 in
-
Stone amount in the cage (HUUM US manual): 35–40 kg / 77–88 lb — on top of the stove’s own stones
-
Extra boxes (this shop): About 3 extra boxes of 534-BDL-STONES-SM-33 per cage (15 kg each → 45 kg vs 40 kg spec)
-
Stacking: Yes — more than one cage per flue; hardware not in the carton
-
Role: Smoke-pipe stone cage — not the flue
Downloads
FAQ
Do I still need the stove’s own stones?
Yes. Fill the HIVE Wood or Flow first (5–10 cm). This cage is a second pile around the pipe — up to 40 kg / 88 lb more, about 3 extra SM boxes per cage.
Harvia 10–15 cm rocks?
No. HUUM wood and this cage take 5–10 cm. Use 534-BDL-STONES-SM-33, not AC3020.
Can I stack cages?
Yes. HUUM’s US sheet: more than one cage per flue. Qty on the stove page starts at 0; add 1, 2, or more. Stacking bolts are not in this carton.
Electric HUUM?
No. This cage goes around a wood-stove flue. DROP / HIVE / CLIFF / STEEL electric heaters do not get it. Embedding flanges are different SKUs.
Does this replace the chimney set?
No. You still need a legal flue (HUUM through-ceiling / through-wall / barrel set, or what the installer and code allow). This only wraps the pipe with stones.
Can I check out?
Inventory is not tracked on this SKU — we keep selling and confirm the carton. Email hello@selfcaresaunas.com if you want the cage, extra SM boxes, and the matching HIVE Wood or Flow on one order.
Email hello@selfcaresaunas.com if you want this paired with a wood stove and the extra stone boxes. Stones for the cover or cage are sold separately — the stove’s own pile is not enough.
